GD&T Explained: A Complete Guide for Mechanical Engineering Drawings
Geometric Dimensioning and Tolerancing (GD&T) is an essential system used in mechanical engineering drawings to define the geometry, tolerances, and functional relationships of manufactured parts. It provides a precise method for communicating design intent between engineers, designers, machinists, and manufacturers.
In modern manufacturing environments, traditional dimensioning methods are often not sufficient to describe complex component geometries. GD&T solves this problem by using standardized symbols and rules that clearly define allowable variations in size, shape, orientation, and location of features.
By applying GD&T correctly in engineering drawings, companies can improve product quality, reduce manufacturing errors, and ensure proper assembly of mechanical components.
What is GD&T in Engineering Drawings?
GD&T is a symbolic language used on engineering drawings to describe the allowable variation in part geometry. It defines how much deviation is permitted from the ideal shape or position of a feature while still allowing the part to function properly.
Instead of relying only on basic dimensions, GD&T uses a combination of symbols, datums, and tolerance zones to communicate design requirements clearly. This ensures that manufacturers understand exactly how a part should be produced and inspected.
GD&T is widely used in industries such as automotive, aerospace, industrial equipment manufacturing, and precision machining, where accuracy and consistency are critical.
Why GD&T is Important in Mechanical Design
One of the main reasons GD&T is important is that it clearly communicates the functional requirements of a part. Engineers can specify how different features of a component must relate to each other in order to ensure proper assembly and performance.
Without GD&T, manufacturers may interpret drawings differently, which can lead to dimensional errors and assembly problems. By defining tolerances using standardized GD&T symbols, designers eliminate ambiguity and ensure consistent production.
Another advantage is improved design flexibility. GD&T allows engineers to specify tolerances based on functional requirements rather than relying on overly strict dimensions. This helps manufacturers produce parts more efficiently without compromising quality.
Key GD&T Concepts Used in CAD Drawings
Mechanical engineering drawings that include GD&T typically use several important concepts.
Datums

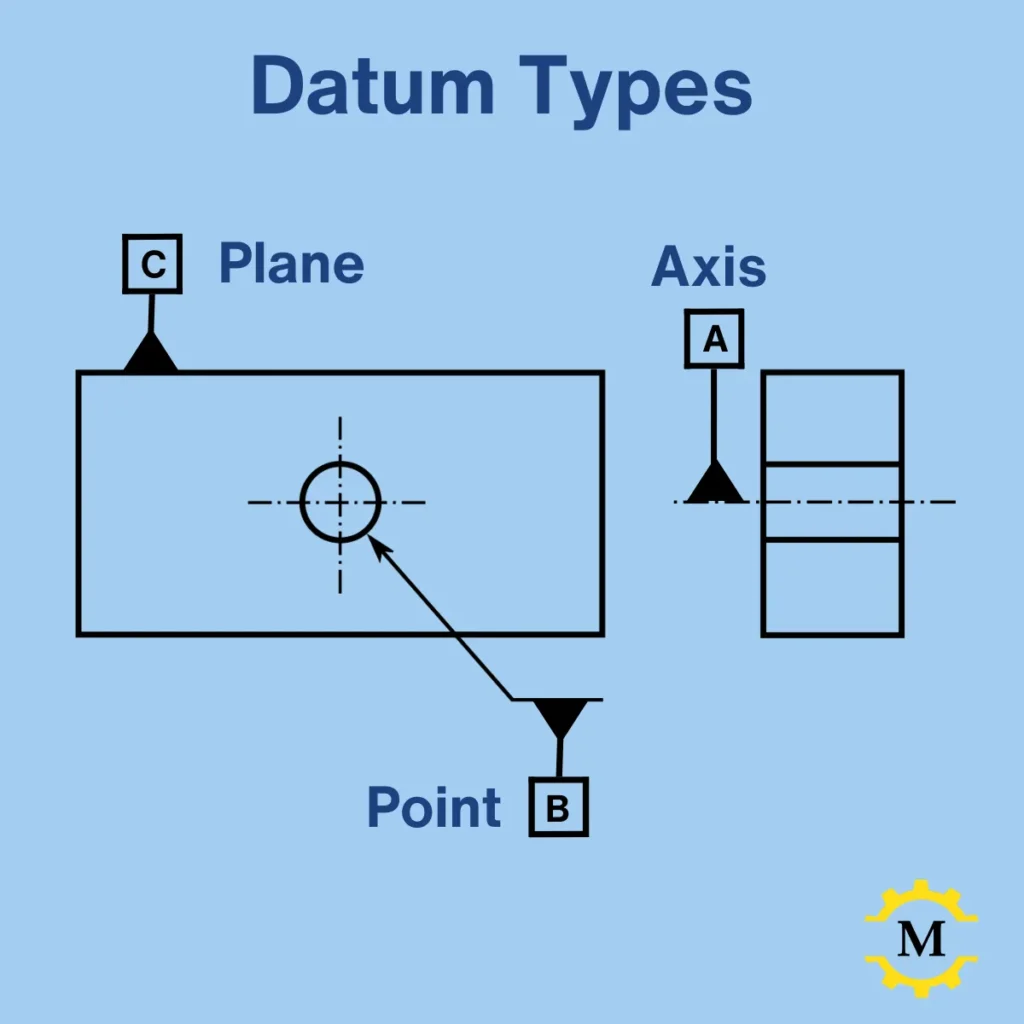

A datum is a reference point, line, or surface used to establish a coordinate system for measurement. Datums help define how a part is oriented during inspection and assembly.
Tolerance Zones

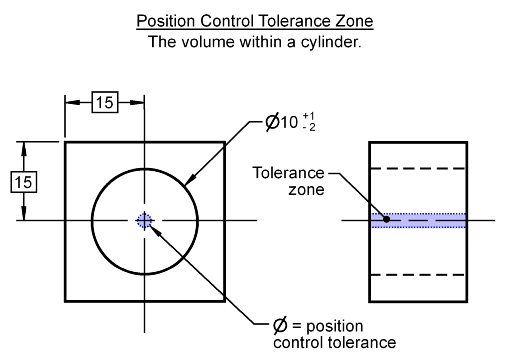

Tolerance zones describe the allowable variation in a feature’s position or geometry. They define the acceptable limits within which a feature must exist.
Feature Control Frames

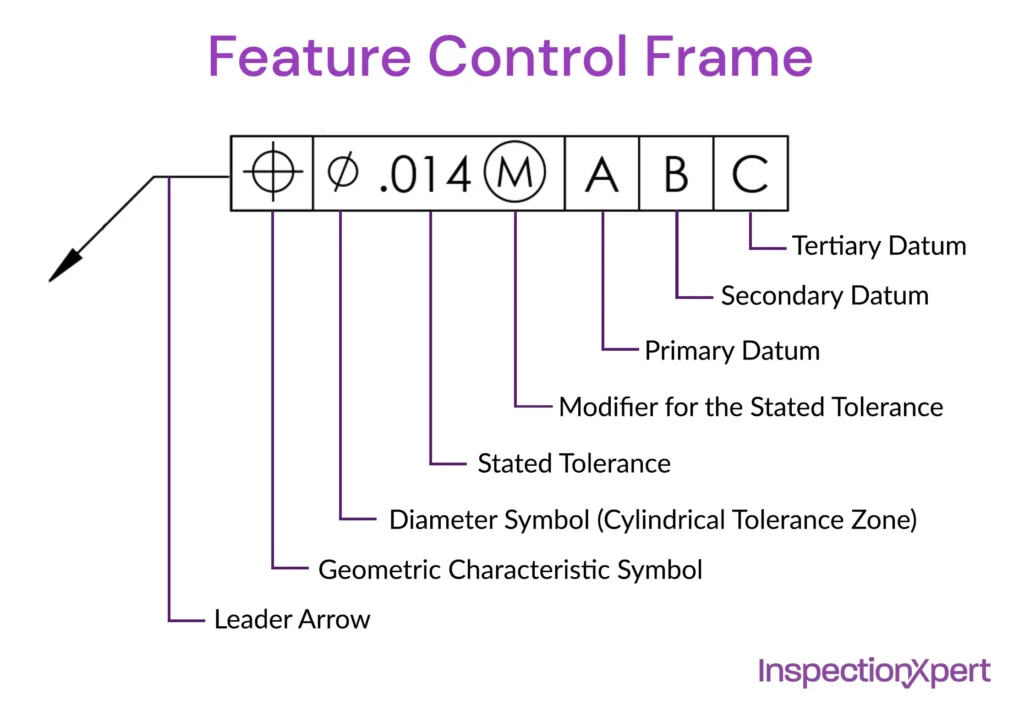

A feature control frame is a rectangular box containing GD&T symbols, tolerance values, and datum references. It communicates the specific geometric control applied to a feature.
Geometric Characteristics

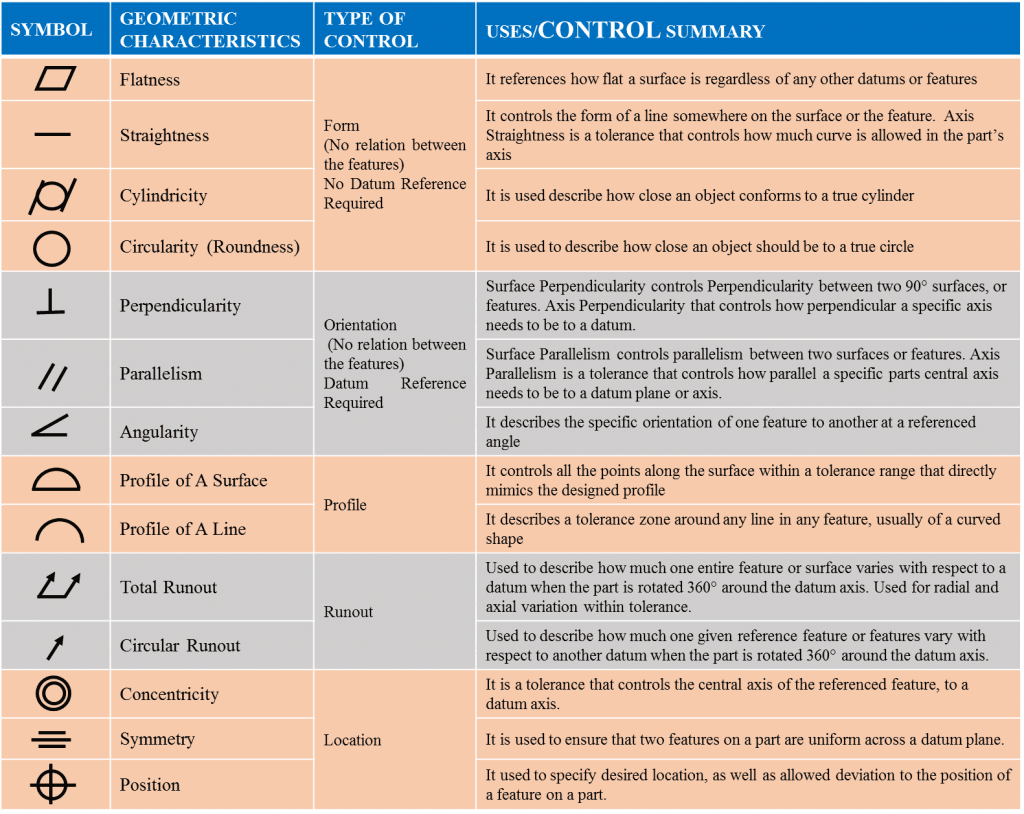

These characteristics define different types of geometric control, such as flatness, parallelism, perpendicularity, circularity, and position.
Together, these elements ensure that parts are manufactured within acceptable limits and function as intended.
Benefits of Using GD&T in Manufacturing
Applying GD&T in mechanical engineering drawings offers several significant advantages.
Improved Product Quality
GD&T helps ensure that parts meet design specifications and function correctly within assemblies.
Better Communication Between Teams
Standardized GD&T symbols provide a universal language that engineers and manufacturers can easily understand.
Reduced Manufacturing Costs
By defining tolerances based on functional requirements rather than unnecessary precision, GD&T allows manufacturers to produce parts more efficiently.
Improved Assembly Accuracy
Parts designed using GD&T fit together more reliably, reducing assembly errors and product failures.
Consistent Inspection and Quality Control
GD&T provides clear inspection criteria that help quality control teams verify that components meet design requirements.
GD&T in Modern CAD Drafting
With the widespread use of CAD software, engineers can easily incorporate GD&T symbols into technical drawings. Modern CAD tools allow designers to define geometric tolerances directly within digital models and manufacturing drawings.
These digital drawings provide manufacturers with accurate and detailed information that can be used for machining, fabrication, and inspection.
Professional CAD drafting services play a crucial role in ensuring that GD&T symbols and tolerances are correctly applied according to international standards. Proper implementation of GD&T helps prevent misinterpretation and ensures that drawings are suitable for manufacturing.
Conclusion
Geometric Dimensioning and Tolerancing is a critical component of modern mechanical engineering drawings. It provides a precise and standardized method for defining allowable variations in part geometry while maintaining functional requirements.
By using GD&T in CAD drawings, engineers can improve communication between design and manufacturing teams, enhance product quality, and reduce production errors.
Companies that adopt GD&T standards in their engineering documentation benefit from more efficient manufacturing processes and more reliable product performance.
